LS190 Gloss Meter – Overview The LS190 is a handheld, cost-effective gloss meter designed for surface gloss measurement on materials such as paint, coatings, plastics, paper, ceramics, stone, metals, etc. It focuses on easy operation, reliable data, and quick quality control with support for batch testing. 📊 Technical Parameters Parameter Specification Measuring angle 60° (standard medium-gloss geometry) Measuring spot / aperture 9 mm × 15 mm Minimum sample size 20 mm × 10 mm Measuring range 0–200 GU (Gloss Units) Resolution 1 GU Repeatability ±1 GU (0–120 GU); ±1 % (120–200 GU) Reproducibility ±1 GU / ±1 % Zero error 1 GU Indication error ±3 GU across range Power supply Rechargeable lithium battery (3.7 V, ~600 mAh) Display 240×128 dot matrix LCD Languages English & Simplified Chinese Data communication USB-C to PC Dimensions ~140 × 48 × 75 mm Weight ~237 g Operating temp & humidity 10–45 °C, 0–85 % RH (no condensation) Storage temp −10–60 °C Gloss Units (GU) are the standard measurement unit for specular reflection and surface shine. ✨ Key Features ✔ Easy to Use The meter can be put on the surface and measured immediately with no button press required in basic mode. ✔ Normal & QC Mode Normal Mode for single measurements. QC Mode allows setting upper & lower limits for automatic qualification results — ideal for batch inspections/quality control. ✔ Accurate & Stable Uses D65 light source and photopic spectral response to improve accuracy on colored samples. High repeatability/resolution for consistent results. ✔ Robust Design Passes extensive quality tests (thousands of calibration, stability, vibration and aging tests) to ensure reliability. ✔ Ergonomic & Portable Lightweight ergonomics with a comfortable grip. ✔ Long Battery Life Auto-shutdown and efficient power use for extended measurement sessions. 📜 Standards & Compliance The LS190 conforms to major national and international gloss measurement standards, ensuring its measurements are consistent with industry practice: International Standards ISO 2813 – Surface gloss measurement for paints/coatings. ISO 7668, ASTM D523, ASTM D2457 – Standard methods for specular gloss testing. DIN 67530 – German gloss measurement standard. Chinese Standards GB/T 9754, GB/T 13891, GB/T 7706, GB/T 8807 – National gloss/testing standards. Meets Grade 2 working machine performance according to JJG 696-2015 verification regulation for gloss meters. 💻 PC Software The meter comes with Windows PC software. Via USB you can: • Perform online measurements. • Configure parameters. • Collect and store data. • Generate and print reports — useful for quality documentation. You can install the software directly from the included files or download it and run it without full installation. 📌 Who It’s Best For Quality control in coatings, paint, plastics, printing, leather, wood, stone, and automotive panels. Production environments needing quick pass/fail measurements (QC mode). Budget-sensitive labs or operators requiring a basic yet standards-compliant gloss meter.

Linshang offers multiple types of gloss meters equipped with data statistics functions and professional software, providing efficient and precise gloss measurement solutions. As a professional gloss meter manufacturer, we are dedicated to delivering high-cost performance and high-accuracy instruments for evaluating gloss uniformity across various surfaces. Our gloss meters are widely used in industries such as automotive, printing, paint, coating, ink, plastic, paper, tile, stone, metal, plating, and more. Whether you need to measure the gloss of car surfaces, marble, or painted coatings, Linshang gloss meters deliver consistent and reliable results with exceptional accuracy. For more information about product prices, technical parameters, and model selection, please contact us directly.

The portable desktop spectrophotometer TS8280 is a spectrophotometer developed by 3NH with independent core spectroscopic technology. It adopts built-in silicon photodiode array (40 groups in double rows) sensors and imported white board, and gives consideration to the speed of measurement and the convenience of operation. The rotating and pressing structure makes the test more convenient. TS8280 portable desktop spectrophotometer color measurement instrument features with repeatability Δ E * ab easily control within 0.05, and inner errors Δ E * ab control within 0.15. This accuracy measurement makes it good used in the lab color accurate analysis and transfer. Application of TS8280 portable Desktop spectrophotometer: TS8280 portable desktop spectrophotometer color measurement instrument equipped with Φ30 mm diameter measurement, to adapt to the measurement of large samples, suitable for precise color measurement and quality control in textile and garment printing and dyeing, plastic electronics, ceramics and other industries; and it can be used for fluorescence sample measurement. Technical Advantages: 1.Adopt international common use d/8 SCI/SCE Synthesis technology TS8280 spectrocolorimeter adopts D/8(diffused illumination, 8-degree viewing angle) which is widely applicable in the world, and SCI/SCE (specular component included/specular component excluded) Synthesis technology, supporting SCI+SCE simultaneous rapid measurement, and the test time is about 3.2 seconds. 2. Silicon photodiode array sensor (40 groups with double rows) Double 40 array sensor with larger area, high light saturation, high sensitivity of low light and wide spectral response range ensure the measurement speed, accuracy, stability and consistency of the instrument. 3.A variety of color space, a variety of observation light sources TS8280 portable desktop spectrophotometer color measurement instrument provides CIE LAB, XYZ, Yxy, LCh, CIE LUV, s - RGB, HunterLab, βxy, DIN Lab99, Munsell (C / 2) color space, and D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4 and F5, F6 and F7 (DLF), F8, F9, F10 (TPL5), and F11 (TL84), F12 (TL83 / U30) light sources, which can meet the special measurement requirements under different measurement conditions. 4.Adopt combination full spectrum LED light source and UV light source Each Full band balanced LED light source ensures sufficient spectral distribution in visible light range, avoids the spectral loss of white LED in specific band, ensures the accuracy of instrument measurement speed and measurement results, and professional UV light source ensures more reliable UV testing. 5.Camera locating can clearly observe the measured area TS8280 spectrophotometer has a built-in camera for positioning, which can accurately determine whether the measured part of the object is the center of the target through real-time viewing by the camera, thus improving the measurement efficiency and accuracy. 6. Calirbation Certificate TS8280 spectrophotometer has been verified and tested. After leaving the factory, each instrument is verified according to the measurement standards of authoritative verification departments, and the measurement data are traceable to the National Metrotechnical Institute to ensure the authority of the instrument test data. 7.Industrial-grade HD touch screen, easy to use user interface Using 7-inch industrial grade hd touch screen, smooth operation, the user interface is easy to use and it makes the operation to become comfortable and convenient. 8.Color management software SQCX quality management software with TS8280 spectrophotometer is suitable for quality monitoring and color data management in various industries. Data the user's color management, compare color differences, generate test reports, provide multiple color space measurement data, and customize the customer's color management. 9.Optional Accessory Micro printer, foot switch, rotating bracket can be freely selected according to the needs.

YL4520 spectrophotometer is a color measuring instrument with 45/0 optical geometry(45 ring-shaped illumination, vertical viewing), to achieve precise non-contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc, which is developed by 3nh independently with independent intellectual property. YL4520 non-contact benchtop spectrophotometer can be applied for accurate color analysis and transmission in laboratories and R & D industries; it can also be used for accurate color measurement and quality control of automated production lines; it is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries. Its unique innovative design can not only provide non-contact measurement scheme directly from the production line, but also ensure stable and high-precision measurement results. YL4520 non-contact spectrophotometer will not touch the sample in the measurement process, to prevent damage to the sample, but also to avoid cross contamination. * PRODUCT FEATURES :- 1. non-contact, 45 / 0 geometric optical structure to measure the reflectance and chromaticity of objects 2. The movable measuring head moves up and down according to the actual height of the measured object 3. Large touch screen measurement interface, real-time display of measurement data, to realize more measurement functions 4. Multiple measurement modes (sample, quality control, continuous statistical mode) can be selected to meet the personalized needs * APPLICATION INDUSTRY :- 45/0 non- contact benchtop spectrophotometer can achieve precise non- contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc. It can be applied for accurate color analysis and transmission In laboratories and R & D industries; It can also be used for accurate color measurement and quality control of automated production lines; It is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries.

YS6020 is a benchtop grating spectrophotometer which is developed by 3nh independently with independent intellectual property. YS6020 has many features, like 7 inches TFT capacitive touch screen display, full illuminants, reflective d/8 and transmissive d/0 geometry (including or excluding UV). With very stable and precise color measurement, large storage and powerful PC software all makes YS6020 ideal for color analysis within R&D and laboratory environments. 1, High configuration of hardware: 7 inches TFT Color Capacitive Touch-screen Display; Concave Grating. 2, Double Array 256 Image Element CMOS Sensor; Long life-span stable xenon lamp. 3, With reflective and transmissive spectrum, accurate Lab value, good to calculate color formula and do precise color transmission. 4, Auto identify measuring aperture. Freely switchable between 3 measuring apertures: Φ 25.4mm/8mm/4mm. Users also can customize apertures. 5, Built-in temperature sensor to monitor and compensate the measuring temperature to ensure the measurement more precision. 6, Wavelength range 360nm – 780nm. Built-in 400nm cut off, more professional in UV measurement. 7, Independent light source detector, continuously monitor the condition of light sources to ensure the light source reliable. 8, Multiple measurement modes: Quality Management Mode, Sample Mode; Meet more users’ requirement. 9,A variety of optional accessories: Reflection sample holding tool, transmission fixture, micro 4mm aperture transmission test components, instrument inversion test components, applicable to more working conditions. 10, Big capacity data storage, for 20000 pieces test result. 11, Built-in camera locating. 12, More powerful extended functions at the PC software. * Application Industry :- YS6020 benchtop spectrophotometer is used to do precise color analysis and transmission in laboratories. It can be widely applied in different industries, such as plastics, electronics, paint and ink, printing, garments, leather, paper, auto, medical, cosmetics, food, science institutes, laboratories.

YS6010 is a benchtop grating spectrophotometer which is developed by 3nh independently with independent intellectual property. YS6010 has many features, like 7 inches TFT capacitive touch screen display, full illuminants, reflective d/8 and transmissive d/0 geometry(including or excluding UV). With very stable and precise color measurement, large storage and powerful PC software all makes YS6010 ideal for color analysis within R&D and laboratory environments. * Features :- 1, High configuration of hardware: 7 inches TFT Color Capacitive Touch-screen Display; Concave Grating. 2, Double Array 256 Image Element CMOS Sensor; Long life-span stable LED, UV LED. 3, With reflective and transmissive spectrum, accurate Lab value, good to calculate color formula and do precise color transmission. 4, Auto identify measuring aperture. Freely switchable between 4 measuring apertures: φ25.4mm/15mm/8mm/4mm. Users also can customize apertures. 5, Built-in temperature sensor to monitor and compensate the measuring temperature to ensure the measurement more precision. 6, Wavelength range 360nm – 780nm. Built-in 400nm cut off/460nm cut off (only xenon lamp edition), more professional in UV measurement. 7, Independent light source detector, continuously monitor the condition of light sources to ensure the light source reliable. 8, Multiple measurement modes: Quality Management Mode, Sample Mode; Meet more users’ requirement. 9. A variety of optional accessories: Reflection sample holding tool, transmission fixture, micro 4mm aperture transmission test components, instrument inversion test components, applicable to more working conditions; 10, Big capacity data storage, for 20000 pieces test result. 11, Built-in camera locating. 12, More powerful extended functions at the PC software. * Application Industry:- YS6010 benchtop spectrophotometer is used to do precise color analysis and transmission in laboratories. It can be widely applied in different industries, such as plastics, electronics, paint and ink, printing, garments, leather, paper, auto, medical, cosmetics, food, science institutes, laboratories.

Designed to increase efficiency and confidence in color formulation and quality control, the Spectro 700 delivers high performance at a cost effective price point. If you are budget constrained but still need to accurately specify, formulate and control colors, the Datacolor Spectro 700 Spectrophotometer is designed for you. With five available configurations, the Spectro 700 can support many different applications: * Standard front facing Spectro 700 * Spectro 700 UV with UV filtering for special applications like optically brightened whites or fluorescent materials * Spectro 700V vertical versions for measuring unusual sample size or type * Spectro 700V UV vertical version with UV filtering * Spectro 750 for flexible measurement in either reflectance or transmittance mode Top Datacolor Spectro 700 Benefits: * Increases productivity with fast measurement speed and response times * Ensures consistency across multiple locations with high inter-instrument agreement * Saves time with backward compatibility to Datacolor benchtop instruments * Increases operational confidence with sample temperature measurements * Ensures your operational confidence with a 5-year warranty*

Designed to help retail paint and hardware stores who need accurate color matching anywhere in the store or at a customer job site. Benefits of Datacolor 20D: * Sphere geometry enables accurate color measurement of both flat and textured samples. * Gloss determination of sample sheen, combined with gloss compensation in PAINT software, enables accurate visual color formulation. * The illuminated sample alignment port enables direct view of the sample through the sphere and precise positioning for sample measurement.

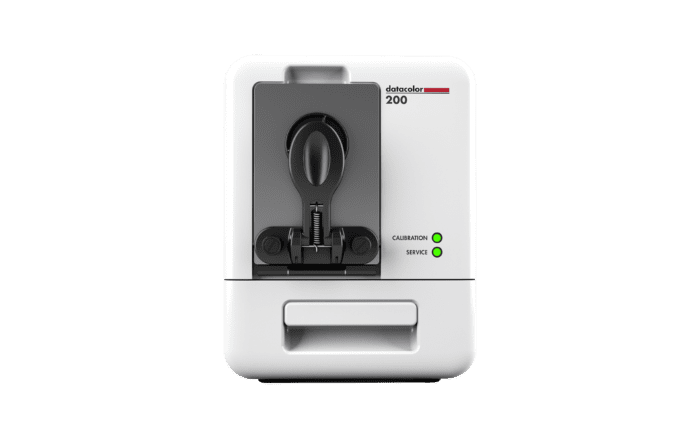

Designed to help customers achieve color on a budget, the Datacolor 200 family of products feature a compact, modern design that is easy-to-install and easy-to-use. Top Datacolor 200 Details: * Maximized workspace with a compact footprint and an integrated drawer that holds the black trap, calibration tiles, and the USB memory stick. * Simplified instrument installation with all required set-up data preloaded. * Increased measurement confidence: Service LED alerts you to deviations in calibration, indicating that your instrument may require service.

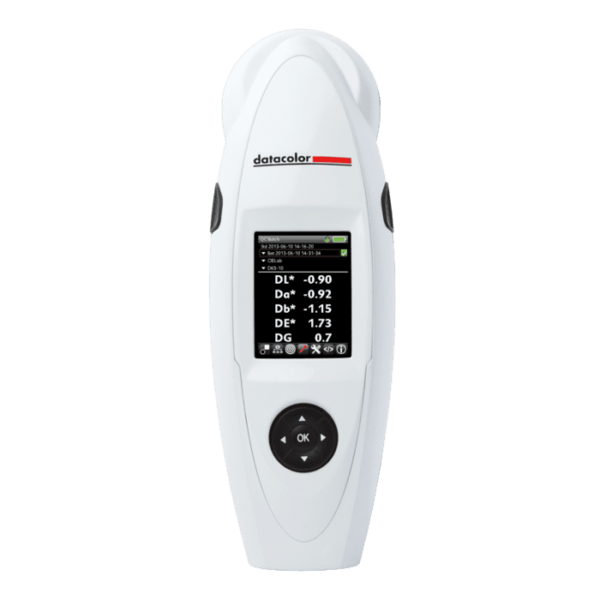

Designed for inspection and control of total color appearance, the Datacolor 45 portable spectrophotometers are ideal for manufacturers of retail hardgoods, automotive components, large appliances, consumer electronics with plastic components, painted surfaces and coil coatings. Top Datacolor 45 Portable Spectrophotometer Details: * Achieve excellent repeatability on highly textured material with a unique optical system that provides uniform circumferential illumination without any shadowing effect while minimizing the need for additional rotational measurements * Increase consistency with the unit’s calibration stand that also serves as a measurement stand for precise calibration and consistent measurements irrespective of the operator or the measurement site * Reduce product mismatch with the Datacolor 45G’s ability to measure color and 60o gloss simultaneously * Improve efficiency with the intuitive user interface and onboard functionality that is easy to learn and use

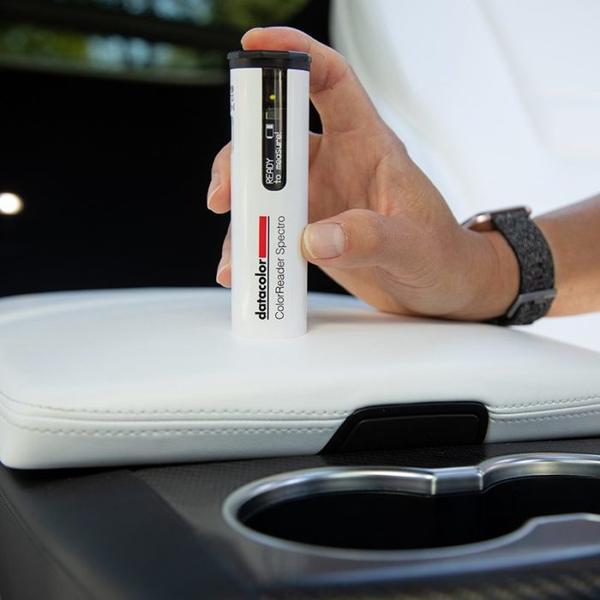

Designed for color matching needs in retail paint and hardware stores, the ColorReader Spectro is an affordable, handheld, Bluetooth-enabled device that can easily and accurately match color. Benefits of ColorReader Spectro: * Affordable quality match at a fraction of the cost of traditional benchtop instruments * Attract and maintain high margin customers with custom matching * Increase store efficiency with an easy to learn and operate system * Improve customer satisfaction with ability to match any trend inspiration colors * Save valuable lab time by matching competitive color in the store

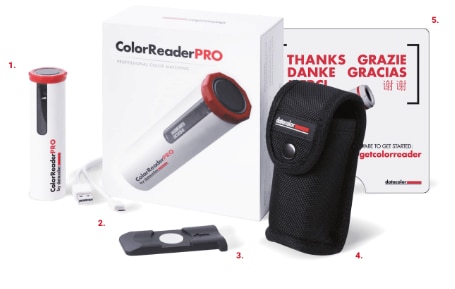

* Over 92% First-match Accuracy :- Features an advanced optical lens and six high CRI white LEDs that isolate and evenly illuminate colors for highly accurate matching on the first try. * Convenient Carrying Case :- The included carrying case protects the device in your toolbox and makes it easy to have it with you at all times. * LED Screen :- On-device LED screen shows color measurements or paint-color matches for added convenience. * Get Useful Color Measurements :- Instantly get paint color matches for most paint brands, as well as Delta E, CIE Lab, RGB, Hex, CMYK, LRV and LCH measurements. Also displays RAL® standard. * Save, Label and Share Colors :- Save your favorite colors, label them for quick reference and easily share with friends, family and even your paint store — right from your phone. * Create Color Palettes :- Build your own color palettes, and with one touch, see complementary, triad, analogous and monochromatic palettes suggested by the app. * Browse Digital Fan Decks :- Scroll through digital fan decks of your favorite paint brands for color inspiration or to fine tune your final color selections. * Advanced Quality Control :- Use the quality control mode to set a color standard and compare subsequent readings to it, showing pass/fail, ΔL, Δa and Δb — made for rigorous industrial settings. * See Trending Colors :- See real-time updates of the most frequently scanned colors from ColorReader users all around the world. * Quick & Easy Paint Color Sampling :- Order Samplize peel-&-stick, re-positionable paint samples from our convenient app. (North America only) * On-device Color Storage :- Sync your desired fan decks to your device’s internal color storage so you can use it without the app and see results right on screen.
