gloss meter

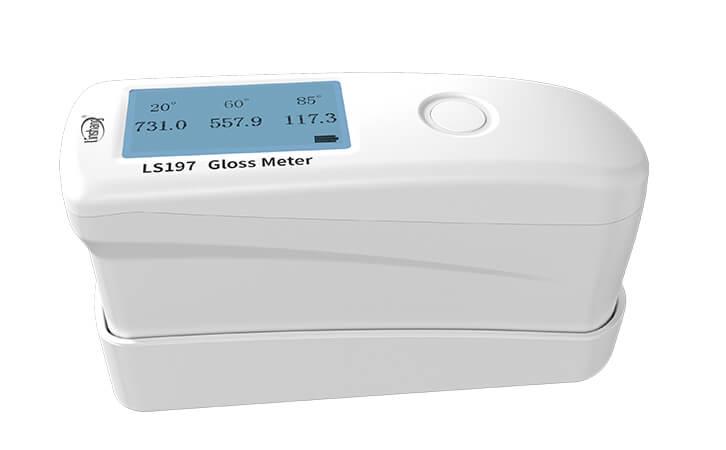

The LS197 is a hand-held gloss meter with a tri-angle measurement design that lets you measure gloss at three different angles (20°, 60°, and 85°) — all from a single device. This makes it ideal for a broader set of surface finishes, from very shiny (high gloss) to matte (low gloss) materials. It’s widely used for testing surface gloss on paints, coatings, inks, plastics, ceramics, paper, stone, metals, electroplated parts, and more. 📊 Technical Specifications Parameter Specification Measuring Angles 20°, 60°, 85° (multi-angle) Measuring Apertures 20°: 9×9 mm 60°: 9×15 mm 85°: 5×38 mm Minimum Sample Size 57 mm × 10 mm Measuring Range 20°: 0–2000 GU 60°: 0–1000 GU 85°: 0–160 GU Resolution 0.1 Gloss Unit (GU) Repeatability 0–120 GU: ±0.2 GU 120–2000 GU: ±0.2 % Reproducibility 0–120 GU: ±0.5 GU 120–2000 GU: ±0.5 % Zero Error ~0.1 GU Indication Error ±1.5 GU or ±1.5 % (across range) Display 240×128 dot-matrix LCD Power Rechargeable lithium battery (3.7 V, ~2000 mAh) Interfaces USB-C (charging & PC data) Languages Supported English & Simplified Chinese Dimensions ~140 × 48 × 75 mm Weight ~300 g Operating Temp/Humidity 10–45 °C, 0–85 % RH (no condensation) Storage Temp –10–60 °C Gloss Units (GU) represent specular reflectance — higher GU means a glossier surface. The multi-angle design lets you interpret gloss data across different geometries for better material characterization. ✨ Key Features 📐 Multi-Angle Measurement Measures gloss at 20°, 60°, and 85° simultaneously — letting you assess high gloss (20°), medium gloss (60°), and low gloss (85°) surfaces with one instrument. 📊 Extra-Wide Range (Up to 2000 GU) With a 2000 GU range at 20° angle, the LS197 handles very high-gloss and reflective finishes that many single-angle meters can’t. ⚡ Fast & Easy Operation Simply place the meter on the surface and the readings appear instantly — no extra button press needed in normal mode. 📈 QC Mode for Batch Testing Quality Control (QC) mode lets you set upper and lower limits to automatically decide if gloss values are within spec — useful for production inspection workflows. 🔧 High Accuracy & Stability Uses D65 standard light source and advanced optics for consistent, accurate measurements even on colored materials. 💻 PC Software Support Connect via USB to Windows PC for data logging, parameter setup, batch statistics, and report generation/printing. 🔋 Long Battery Life Large rechargeable battery supports extended measurement sessions without frequent recharging. 📜 Standards & Compliance The LS197 meets major gloss measurement standards, making its results reliable and globally comparable: ISO 2813 — Paints and coatings gloss measurement ISO 7668 ASTM D523 & ASTM D2457 — Standard gloss test methods DIN 67530 — German gloss standard GB/T 9754, GB/T 13891, GB/T 7706, GB/T 8807 — Chinese gloss standards Meets Grade 1 working machine calibration requirements under JJG 696-2015/2002 verification regulation. 📌 Who It’s Best For The LS197 is ideal if you need: Comprehensive gloss profiling across multiple gloss levels (low, medium, high). High-gloss surface testing beyond 1000 GU (up to 2000 GU). Production line quality control with QC automation. Lab and R&D environments where detailed gloss measurement across angles improves material evaluation.

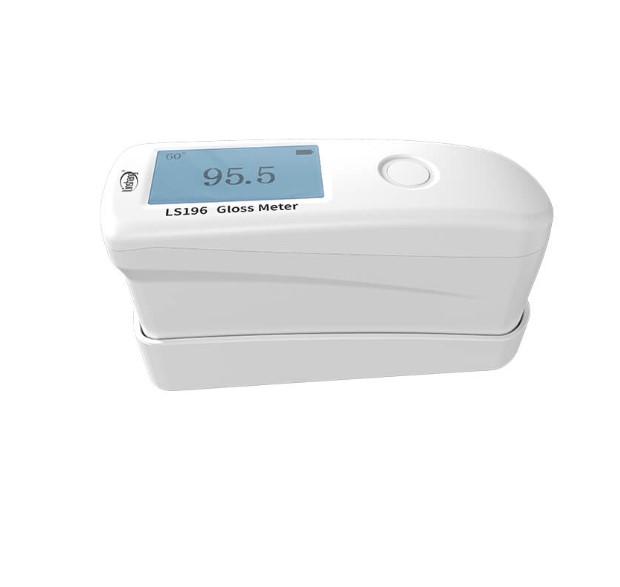

The LS196 is a hand-held digital gloss meter designed for professional surface gloss measurement across a wide range of materials such as paint, coatings, ink, plastic, ceramics, stone, metals, and electroplated finishes. It features high precision, a wide measurement range, and easy operation suitable for both quality control and production inspection environments. 📊 Technical Specifications Parameter Specification Measuring angle 60° (universal for most materials) Measuring spot / aperture 9 mm × 15 mm Minimum sample size 20 mm × 10 mm Measuring range 0 – 1000 Gloss Units (GU) Resolution / Division value 0.1 GU Repeatability ±0.2 GU (0–120 GU); ±0.2 % (120–1000 GU) Reproducibility ±0.5 GU / ±0.5 % Zero error ~0.1 GU Indication error ±1.5 GU (0–120 GU); ±1.5 % (120–1000 GU) Display 240×128 dot-matrix LCD Language support English & Simplified Chinese Power supply Rechargeable lithium battery (3.7 V) Charging / Data interface USB-C (charging + PC data) Dimensions ~140×48×75 mm Weight ~237 g Operating temp/humidity 10–45 °C, 0–85 % RH (no condensation) ✨ Key Features ✔ Wide Range & Professional Accuracy Measures from 0 to 1000 GU, suitable for matte, semi-gloss, and high-gloss surfaces such as metal parts or electroplated panels. Performance meets Grade 1 gloss meter standards, ensuring high accuracy and reliability. ✔ 60° Universal Geometry The 60° measurement angle is ideal for most materials and widely used in industry testing. ✔ Put-and-Measure Simplicity After powering on, just place the meter on the surface—no need to press buttons to start measuring. ✔ QC Mode Quality Control mode enables setting upper and lower limits to automatically judge if measured gloss is within specification—great for batch inspections. ✔ PC Software Support Connect to a Windows PC via USB to collect data, set parameters, run online measurements, and generate or print test reports. ✔ Ergonomic & Durable Engineered with a comfortable grip and robust housing for frequent use on both shop floors and laboratory settings. ✔ D65 Light Source Uses a D65 standard light source with a photopic spectral response for better accuracy on colored surfaces. ✔ Auto Shutdown & Long Battery Life Smart power management with auto-off and long measurement sessions on a full charge. 📜 Standards & Compliance The LS196 conforms to major international gloss measurement standards, meaning its results are comparable and accepted in global quality systems: International standards ISO 2813 – Paints and coatings specular gloss measurement ISO 7668 ASTM D523 & ASTM D2457 – Standard test methods for gloss DIN 67530 – German gloss measurement standard Chinese standards GB/T 9754, GB/T 13891, GB/T 7706, GB/T 8807 Meets Grade 1 working machine requirements under JJG 696-2015 verification regulation. 🔍 Typical Use Cases The LS196 is ideal for: Quality control of paint and coating production. Assessing gloss on automotive parts, plastic components, metals, and ceramics. Batch inspection in factories using QC pass/fail judgments. Laboratory or field testing where reliable gloss data is required.

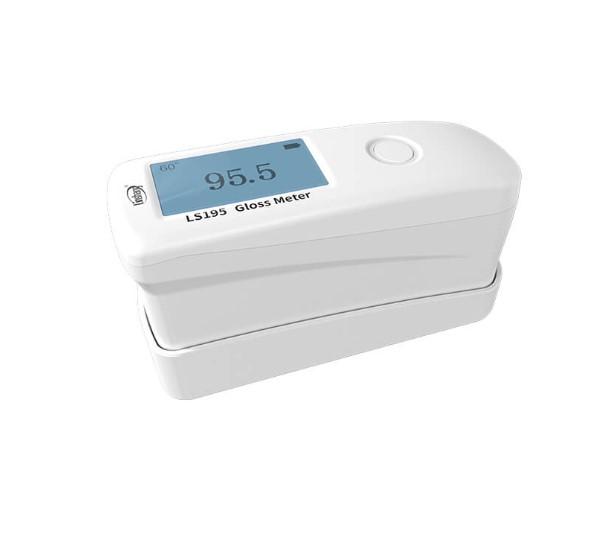

Linshang LS195 Cost-Effective Gloss Meter The LS195 is a hand-held gloss meter designed for professional surface gloss testing on a wide variety of materials — including paint, coatings, ink, plastic, paper, ceramics, stone, and metals. It’s positioned as a cost-effective yet high-precision instrument, ideal for quality control in production and laboratory environments. 📊 Technical Specifications Parameter Specification Measuring Angle 60° (standard universal) Measuring Aperture 9 mm × 15 mm Minimum Sample Size 20 mm × 10 mm Measuring Range 0 – 200 GU Resolution 0.1 GU Repeatability ±0.2 GU (0–120 GU) / ±0.2 % (120–200 GU) Reproducibility ±0.5 GU / ±0.5 % Zero Error ~0.1 GU Indication Error ±1.5 GU throughout range Display 240×128 dot matrix LCD Languages English & Chinese Power Supply Rechargeable lithium battery 3.7 V (~600 mAh) Data Interface USB-C for PC connection & charging Size & Weight ~140×48×75 mm, ~237 g Operating Conditions 10–45 °C, 0–85 % RH (no condensation) Gloss Units (GU) are the standard metric for surface specular reflectance — higher GU means a shinier surface. ✨ Key Features & Benefits ✅ Plug-and-Measure Simplicity Instant results — after turning on you can simply place the meter and read data within ~0.5 s. 🧪 QC Mode for Batch Testing The QC (Quality Control) mode lets you set upper/lower thresholds to automatically judge pass/fail for batches, boosting efficiency. 📈 High Accuracy and Stability Uses a D65 light source with photopic spectral response for consistent measurements, even on colored surfaces. Good repeatability/resolution enhances reliability for QC and product comparisons. 💻 PC Software Support Connect via USB to Windows PC to collect data, configure settings, run online measurement, and generate/print reports. 🔋 Portable Ergonomic Design Lightweight and ergonomic shape for handheld use — ideal for shop floor and lab applications. Auto power-off & long battery life support extended use without frequent charging. 📜 Standards & Compliance The LS195 conforms to key international and national gloss measurement standards, ensuring widely acceptable, comparable results: ISO 2813 – Surface gloss of paint & coatings ISO 7668; ASTM D523 / D2457 – Standard gloss methods DIN 67530 – German gloss standard GB/T 9754, GB/T 13891, GB/T 7706, GB/T 8807 – Chinese gloss test standards Meets Grade 1 working machine performance under JJG 696-2015 verification regulation — meaning its accuracy is suitable for professional/lab use. 📌 Best Applications The LS195 is suited for: Quality assurance in paints, coatings, plastic parts, printing, wood & stone finishes. Routine production inspections where quick, repeatable gloss checks are needed. General lab and workshop use requiring a budget-friendly but accurate gloss meter.

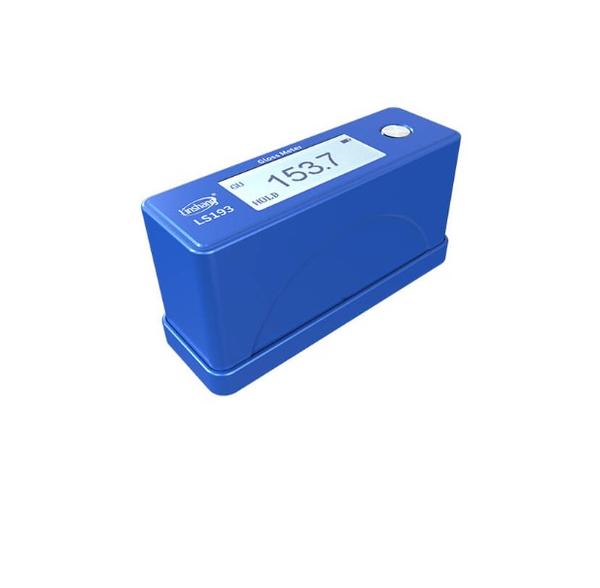

The LS193 is a hand-held gloss meter with a micro measuring aperture, designed especially for small, curved or hard-to-reach surfaces where conventional gloss meters won’t fit. It’s ideal for precision work on mini components, curved plastics, jewelry, narrow painted parts, etc., while still offering a wide measurement range (0–1000 GU) and professional performance. 📊 Key Specifications Parameter Specification Measuring angle 60° universal geometry (standard for general gloss measurement) Measuring aperture / light spot 1.5 mm × 3 mm (tiny spot for small/curved surfaces) Minimum sample size ~3 mm × 6 mm Measuring range 0–1000 GU (Gloss Units) — covers matte to very glossy surfaces Resolution 0.1 GU Repeatability ±0.2 GU (0–120 GU); ±0.2 % (120–1000 GU) Reproducibility ±0.5 GU (0–120 GU); ±0.5 % (120–1000 GU) Zero error 0.1 GU Indication error ±1.5 GU across range Display 192 × 64 dot matrix LCD Power Rechargeable lithium battery (3.7 V @ 1000 mAh) Interfaces USB-C for charging + USB data transfer to PC Language English & Simplified Chinese Weight & Size ~300 g; 102 × 35 × 51 mm Operating Temp/Humidity 10–45 °C, 0–85 % RH (no condensation) ✨ Main Features 🔍 Micro Measuring Aperture The small 1.5 × 3 mm measuring spot allows precise gloss measurement on tiny parts, curved edges, or narrow surfaces that larger gloss meters can’t fit. 📈 Wide Gloss Range Despite its small measuring spot, it measures from 0–1000 GU — suitable for low, medium, and high gloss surfaces. 🤖 Simple Operation Normal mode: Place the meter on the surface; it automatically reads the gloss without pressing any buttons. QC mode: Set upper/lower limits for automatic pass/fail quality checks — useful for batch measurements in production environments. 🌈 Accurate & Stable Uses a D65 light source with photopic spectral response, improving accuracy on colored samples. 💻 PC Software Support Connect to a Windows PC via USB to: Collect and save measurement data. Configure test parameters. Generate & print detailed test reports. Linshang’s software supports all their gloss meters, including LS193. 🧠 Temperature Compensation Built-in temperature compensation helps ensure stable measurements over time across varying environments. 📦 Portable & Durable Compact & lightweight (about 300 g). Aluminum shell for durability and easy handling during field or lab work. 📜 Standards & Compliance The LS193 meets key international and national gloss measurement standards, ensuring compatibility with industry practices: ISO 2813, ISO 7668 ASTM D523, ASTM D2457 DIN 67530 GB/T 9754, GB/T 13891, GB/T 7706, GB/T 8807 Meets Grade 1 working machine requirements under JJG 696-2015 Verification Regulation for specular gloss meters. 🎯 Best Use Cases The LS193 is especially useful when dealing with: Small components & mini parts (e.g., plastics, jewelry). Curved surfaces or edges that larger gloss meters can’t measure. Precision QC checks in manufacturing with automated pass/fail evaluation. Production lines needing compact, rugged measurement tools.

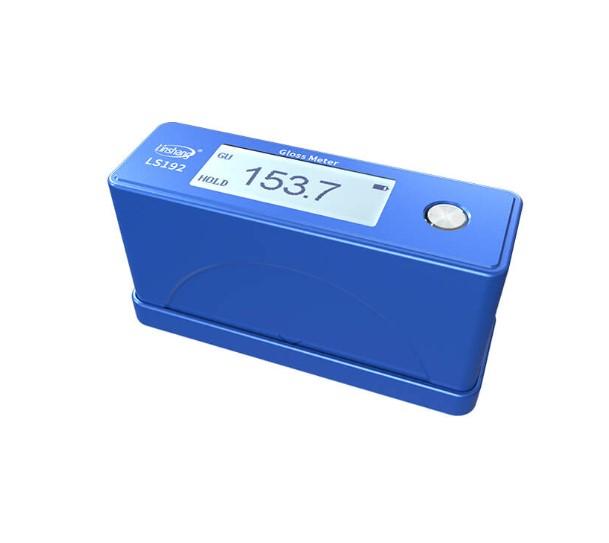

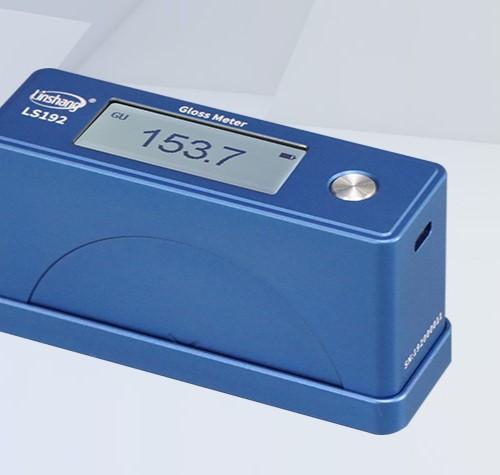

The LS192 is a handheld digital gloss meter designed for accurate surface gloss measurement on a wide range of materials like paint, coatings, metals, ceramics, stone, plastics, paper, and more. It expands the range beyond basic gloss meters, reaching high-gloss surfaces up to 1000 GU and meeting Grade 1 performance standards. 📊 Technical Specifications Parameter Specification Measurement angle 60° (universal angle) Measuring range 0 – 1000 Gloss Units (GU) Resolution 0.1 GU Measuring spot 9 mm × 15 mm Minimum sample size ~20 × 10 mm Repeatability ±0.2 GU (0–100 GU); ±0.2 % (100–1000 GU) Reproducibility ±0.5 GU (0–100); ±0.5 % (100–1000) Zero error ~0.1 GU Indication error ±1.5 GU (0–100); ±1.5 % (100–1000) Display LCD (192 × 64 matrix) Languages English & Simplified Chinese Power Rechargeable lithium battery (~3.7 V, 1000 mAh) Interface USB-C for PC data transfer Weight ~300 g Dimensions ~104 × 35 × 60 mm Operating Temp 10 – 45 °C; humidity up to 85 % (no condensation) Gloss Units (GU) indicate how shiny a surface is — higher values mean a more reflective (glossier) surface. ✨ Key Features ✔ Wide Measurement Range Measures from matte to high-gloss surfaces (0–1000 GU) — suitable for products with very high reflectivity. ✔ High Precision (Grade 1 Performance) Instrument accuracy and repeatability meet Grade 1 gloss meter standards, qualifying for professional and quality-critical applications. ✔ Easy & Intelligent Operation Normal mode: fast one-touch measurements — place on surface and read result. QC mode: lets operators set upper and lower limits for quick pass/fail quality checks. ✔ Real-Time Statistics Displays real-time values, max/min/average, standard deviation for up to 99 readings (more with PC software). ✔ Temperature Compensation Built-in temperature compensation improves stability and reduces drift over long-term usage. ✔ Portable & Durable Slim, compact design, aluminum shell — durable and easy to carry. 💻 PC Connectivity & Software Connects via USB to a Windows PC. PC software allows: • Real-time online measurement • Setting test parameters • Batch data collection & statistics • Report generation & printing The software can run directly from the included USB drive or be downloaded and launched after unzipping. 📜 Standards & Compliance The LS192 meets major international and national gloss measurement standards, ensuring reliable and comparable data across laboratories and industries: International Standards ISO 2813 — Gloss measurement for paints/coatings ISO 7668 ASTM D523 & ASTM D2457 — Standard gloss measurement methods DIN 67530 — German gloss measurement standard Chinese Standards GB/T 9754, GB/T 13891, GB/T 7706, GB/T 8807 Conforms to Grade 1 working machine under JJG 696-2015 verification regulation. 🧠 Typical Uses The LS192 is ideal for: Production quality control of paints, coatings, plastics, ceramics, stone, metals. Material R&D and lab testing where high-gloss measurements are required. Batch inspections with automatic QC pass/fail evaluation.

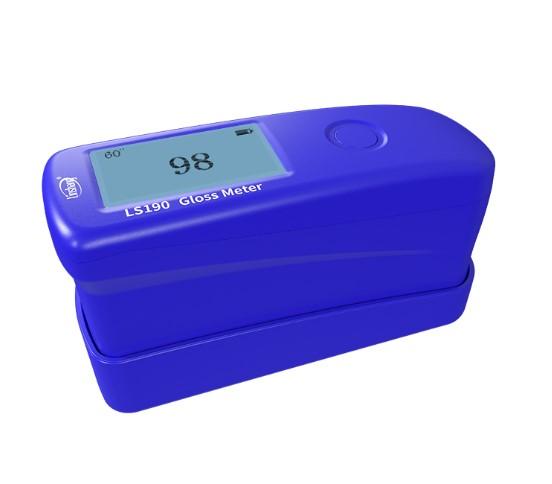

LS190 Gloss Meter – Overview The LS190 is a handheld, cost-effective gloss meter designed for surface gloss measurement on materials such as paint, coatings, plastics, paper, ceramics, stone, metals, etc. It focuses on easy operation, reliable data, and quick quality control with support for batch testing. 📊 Technical Parameters Parameter Specification Measuring angle 60° (standard medium-gloss geometry) Measuring spot / aperture 9 mm × 15 mm Minimum sample size 20 mm × 10 mm Measuring range 0–200 GU (Gloss Units) Resolution 1 GU Repeatability ±1 GU (0–120 GU); ±1 % (120–200 GU) Reproducibility ±1 GU / ±1 % Zero error 1 GU Indication error ±3 GU across range Power supply Rechargeable lithium battery (3.7 V, ~600 mAh) Display 240×128 dot matrix LCD Languages English & Simplified Chinese Data communication USB-C to PC Dimensions ~140 × 48 × 75 mm Weight ~237 g Operating temp & humidity 10–45 °C, 0–85 % RH (no condensation) Storage temp −10–60 °C Gloss Units (GU) are the standard measurement unit for specular reflection and surface shine. ✨ Key Features ✔ Easy to Use The meter can be put on the surface and measured immediately with no button press required in basic mode. ✔ Normal & QC Mode Normal Mode for single measurements. QC Mode allows setting upper & lower limits for automatic qualification results — ideal for batch inspections/quality control. ✔ Accurate & Stable Uses D65 light source and photopic spectral response to improve accuracy on colored samples. High repeatability/resolution for consistent results. ✔ Robust Design Passes extensive quality tests (thousands of calibration, stability, vibration and aging tests) to ensure reliability. ✔ Ergonomic & Portable Lightweight ergonomics with a comfortable grip. ✔ Long Battery Life Auto-shutdown and efficient power use for extended measurement sessions. 📜 Standards & Compliance The LS190 conforms to major national and international gloss measurement standards, ensuring its measurements are consistent with industry practice: International Standards ISO 2813 – Surface gloss measurement for paints/coatings. ISO 7668, ASTM D523, ASTM D2457 – Standard methods for specular gloss testing. DIN 67530 – German gloss measurement standard. Chinese Standards GB/T 9754, GB/T 13891, GB/T 7706, GB/T 8807 – National gloss/testing standards. Meets Grade 2 working machine performance according to JJG 696-2015 verification regulation for gloss meters. 💻 PC Software The meter comes with Windows PC software. Via USB you can: • Perform online measurements. • Configure parameters. • Collect and store data. • Generate and print reports — useful for quality documentation. You can install the software directly from the included files or download it and run it without full installation. 📌 Who It’s Best For Quality control in coatings, paint, plastics, printing, leather, wood, stone, and automotive panels. Production environments needing quick pass/fail measurements (QC mode). Budget-sensitive labs or operators requiring a basic yet standards-compliant gloss meter.

Linshang offers multiple types of gloss meters equipped with data statistics functions and professional software, providing efficient and precise gloss measurement solutions. As a professional gloss meter manufacturer, we are dedicated to delivering high-cost performance and high-accuracy instruments for evaluating gloss uniformity across various surfaces. Our gloss meters are widely used in industries such as automotive, printing, paint, coating, ink, plastic, paper, tile, stone, metal, plating, and more. Whether you need to measure the gloss of car surfaces, marble, or painted coatings, Linshang gloss meters deliver consistent and reliable results with exceptional accuracy. For more information about product prices, technical parameters, and model selection, please contact us directly.
