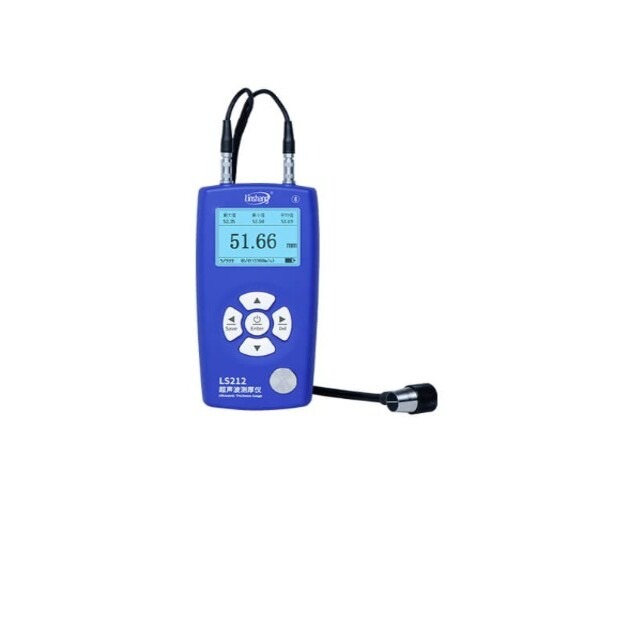

LS212 Ultrasonic Thickness Gauge

The LS212 is a handheld ultrasonic thickness gauge that uses ultrasonic pulse-echo technology to measure the thickness of materials where only one surface is accessible. It’s non-destructive, compact, easy to use, and ideal for industrial inspection, quality control, and corrosion monitoring. 📊 Key Technical Specifications Measurement Performance Thickness range (standard probe): ~0.8 mm – 350 mm (on steel). Resolution: 0.8–10 mm: 0.001 mm 10–100 mm: 0.01 mm 100–350 mm: 0.1 mm Sound velocity range: 1000–9999 m/s (customizable). Display: 240 × 160 dot-matrix LCD, mm/inch selectable. Accuracy For thin materials (< 10 mm): approx ±0.05 mm. For thicker materials (≥ 10 mm): approx ±0.5 % of reading. Probes Supported The LS212 works with four types of probes (auto-detects the connected probe): Probe Type Typical Use Thickness Range Min. Measuring Spot Standard Probe (5 MHz φ10) General use 0.8–350 mm φ10 mm Micro-diameter Probe (7 MHz PT-06) Small or curved surfaces 0.75–80 mm φ6 mm Coarse Crystal Probe (2 MHz ZT-12) Cast iron / coarse materials 3–200 mm φ12 mm High Temp Probe (5 MHz GT-12) Higher temperature workpieces 3–200 mm φ12 mm Physical & Power Power: 2 × AA alkaline batteries. Size & Weight: About 142 × 72 × 28 mm, ~230 g. Operating Temperature: –10 °C to 60 °C. 🛠️ Features & Functions ✔ Two Measurement Modes QC Mode: Define upper/lower limits with PASS/FAIL feedback. Statistics Mode: Auto-calculates max/min/average values of recent readings. ✔ Automatic Gain Switching Automatically adapts ultrasonic signal gain for clear echo detection across material types and thicknesses. ✔ Penetration Coating Mode Measures true substrate thickness through paint/coating without removal (using standard probe). ✔ Bluetooth & Software Support Bluetooth connectivity to mobile app for data logging and sharing. PC software for data export and analysis. ✔ Large On-board Memory Stores up to 999 measurement records. ✔ Custom Material Sound Velocities You can save custom sound speed values for up to 18 materials for repeated use. 📌 Typical Applications The LS212 is suitable for non-destructive thickness measurement of: Pipes and tubing Pressure vessels Structural steel Metal/plastic/ceramic parts Glass and composites …and in industries like petrochemical, shipbuilding, aerospace, metallurgy, and manufacturing quality control. 🧠 Quick Comparison (Vs. Other Linshang Models) VS LS211: LS211 covers a broader range up to ~600 mm; LS212 up to ~350 mm. VS LS213: Similar range to LS212 but with lower resolution (LS213: ~0.01 mm).
