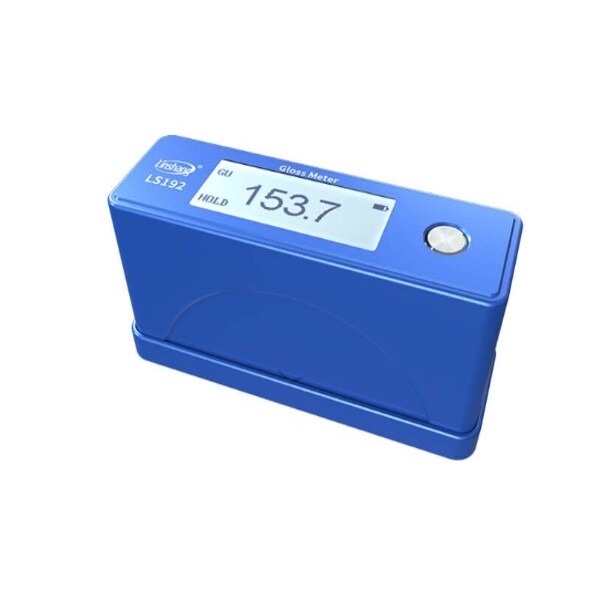

The LS192 is a handheld digital gloss meter designed for accurate surface gloss measurement on a wide range of materials like paint, coatings, metals, ceramics, stone, plastics, paper, and more. It expands the range beyond basic gloss meters, reaching high-gloss surfaces up to 1000 GU and meeting Grade 1 performance standards.
📊 Technical Specifications
Parameter Specification
Measurement angle 60° (universal angle)
Measuring range 0 – 1000 Gloss Units (GU)
Resolution 0.1 GU
Measuring spot 9 mm × 15 mm
Minimum sample size ~20 × 10 mm
Repeatability ±0.2 GU (0–100 GU); ±0.2 % (100–1000 GU)
Reproducibility ±0.5 GU (0–100); ±0.5 % (100–1000)
Zero error ~0.1 GU
Indication error ±1.5 GU (0–100); ±1.5 % (100–1000)
Display LCD (192 × 64 matrix)
Languages English & Simplified Chinese
Power Rechargeable lithium battery (~3.7 V, 1000 mAh)
Interface USB-C for PC data transfer
Weight ~300 g
Dimensions ~104 × 35 × 60 mm
Operating Temp 10 – 45 °C; humidity up to 85 % (no condensation)
Gloss Units (GU) indicate how shiny a surface is — higher values mean a more reflective (glossier) surface.
✨ Key Features
✔ Wide Measurement Range
Measures from matte to high-gloss surfaces (0–1000 GU) — suitable for products with very high reflectivity.
✔ High Precision (Grade 1 Performance)
Instrument accuracy and repeatability meet Grade 1 gloss meter standards, qualifying for professional and quality-critical applications.
✔ Easy & Intelligent Operation
Normal mode: fast one-touch measurements — place on surface and read result.
QC mode: lets operators set upper and lower limits for quick pass/fail quality checks.
✔ Real-Time Statistics
Displays real-time values, max/min/average, standard deviation for up to 99 readings (more with PC software).
✔ Temperature Compensation
Built-in temperature compensation improves stability and reduces drift over long-term usage.
✔ Portable & Durable
Slim, compact design, aluminum shell — durable and easy to carry.
💻 PC Connectivity & Software
Connects via USB to a Windows PC.
PC software allows:
• Real-time online measurement
• Setting test parameters
• Batch data collection & statistics
• Report generation & printing
The software can run directly from the included USB drive or be downloaded and launched after unzipping.
📜 Standards & Compliance
The LS192 meets major international and national gloss measurement standards, ensuring reliable and comparable data across laboratories and industries:
International Standards
ISO 2813 — Gloss measurement for paints/coatings
ISO 7668
ASTM D523 & ASTM D2457 — Standard gloss measurement methods
DIN 67530 — German gloss measurement standard
Chinese Standards
GB/T 9754, GB/T 13891, GB/T 7706, GB/T 8807
Conforms to Grade 1 working machine under JJG 696-2015 verification regulation.
🧠Typical Uses
The LS192 is ideal for:
Production quality control of paints, coatings, plastics, ceramics, stone, metals.
Material R&D and lab testing where high-gloss measurements are required.
Batch inspections with automatic QC pass/fail evaluation.
