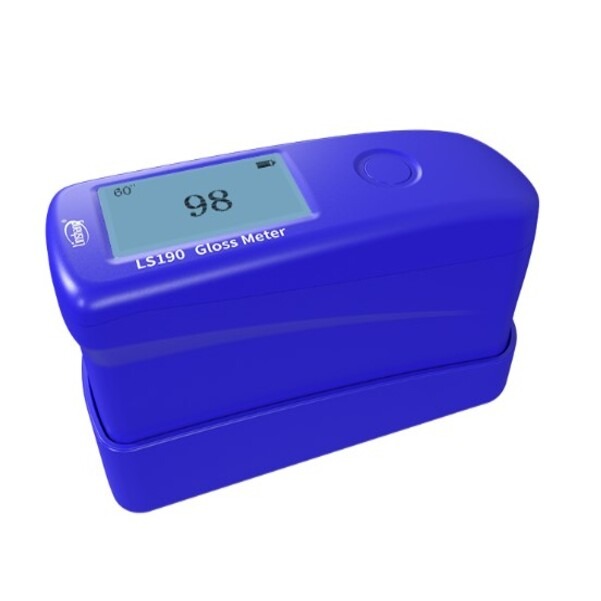

LS190 Gloss Meter – Overview
The LS190 is a handheld, cost-effective gloss meter designed for surface gloss measurement on materials such as paint, coatings, plastics, paper, ceramics, stone, metals, etc. It focuses on easy operation, reliable data, and quick quality control with support for batch testing.
📊 Technical Parameters
Parameter Specification
Measuring angle 60° (standard medium-gloss geometry)
Measuring spot / aperture 9 mm × 15 mm
Minimum sample size 20 mm × 10 mm
Measuring range 0–200 GU (Gloss Units)
Resolution 1 GU
Repeatability ±1 GU (0–120 GU); ±1 % (120–200 GU)
Reproducibility ±1 GU / ±1 %
Zero error 1 GU
Indication error ±3 GU across range
Power supply Rechargeable lithium battery (3.7 V, ~600 mAh)
Display 240×128 dot matrix LCD
Languages English & Simplified Chinese
Data communication USB-C to PC
Dimensions ~140 × 48 × 75 mm
Weight ~237 g
Operating temp & humidity 10–45 °C, 0–85 % RH (no condensation)
Storage temp −10–60 °C
Gloss Units (GU) are the standard measurement unit for specular reflection and surface shine.
✨ Key Features
✔ Easy to Use
The meter can be put on the surface and measured immediately with no button press required in basic mode.
✔ Normal & QC Mode
Normal Mode for single measurements.
QC Mode allows setting upper & lower limits for automatic qualification results — ideal for batch inspections/quality control.
✔ Accurate & Stable
Uses D65 light source and photopic spectral response to improve accuracy on colored samples.
High repeatability/resolution for consistent results.
✔ Robust Design
Passes extensive quality tests (thousands of calibration, stability, vibration and aging tests) to ensure reliability.
✔ Ergonomic & Portable
Lightweight ergonomics with a comfortable grip.
✔ Long Battery Life
Auto-shutdown and efficient power use for extended measurement sessions.
📜 Standards & Compliance
The LS190 conforms to major national and international gloss measurement standards, ensuring its measurements are consistent with industry practice:
International Standards
ISO 2813 – Surface gloss measurement for paints/coatings.
ISO 7668, ASTM D523, ASTM D2457 – Standard methods for specular gloss testing.
DIN 67530 – German gloss measurement standard.
Chinese Standards
GB/T 9754, GB/T 13891, GB/T 7706, GB/T 8807 – National gloss/testing standards.
Meets Grade 2 working machine performance according to JJG 696-2015 verification regulation for gloss meters.
💻 PC Software
The meter comes with Windows PC software.
Via USB you can:
• Perform online measurements.
• Configure parameters.
• Collect and store data.
• Generate and print reports — useful for quality documentation.
You can install the software directly from the included files or download it and run it without full installation.
📌 Who It’s Best For
Quality control in coatings, paint, plastics, printing, leather, wood, stone, and automotive panels.
Production environments needing quick pass/fail measurements (QC mode).
Budget-sensitive labs or operators requiring a basic yet standards-compliant gloss meter.
