The Linshang LS170 is a portable, app-connected colorimeter designed for measuring and comparing color of materials accurately — especially useful when visual assessment isn’t enough (e.g., printing, coatings, packaging, textiles, plastics).
🧪 Key Features

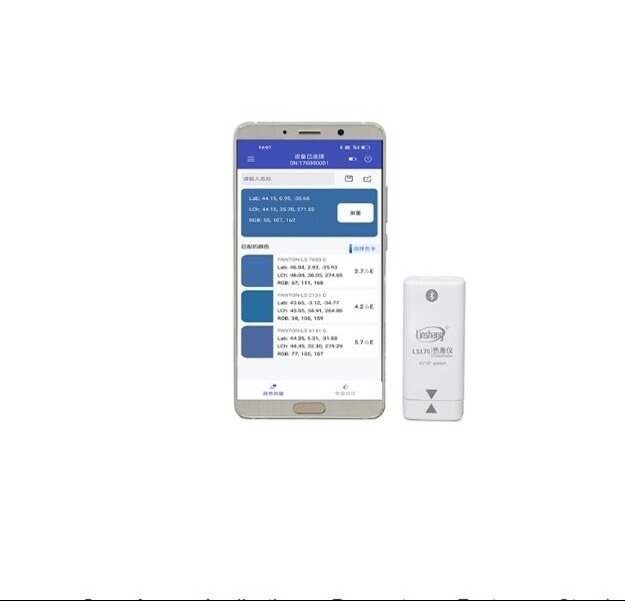

📍 Portable & App-Driven
Works with the LSColor mobile app via Bluetooth — measurement results appear directly on your phone.
🎨 Color Measurement & Matching
Measures color in multiple color spaces:
• CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex.
Includes built-in color reference charts; can match the closest color codes (≈90 % accuracy) and build your own color library.
📊 Color Difference & Quality Control
Supports multiple color difference formulas (e.g., ΔEab, ΔEuv, ΔE94, ΔEcmc formulas, ΔE*00).
Offers a quality control mode where you can set a tolerance threshold and quickly judge whether a sample color is acceptable.
🔄 Good Repeatability
Repeatability (standard deviation ΔE*ab ≤ 0.03) — indicating stable, consistent readings after calibration.
🔋 Long Battery Life
Rechargeable lithium-ion battery — about 10, 000 measurements per charge.
USB-C charging.
🛠️ Technical Specs
Parameter Value
Optical Geometry 45°/0° (annular illumination, 0° viewing)
Light Source Full-spectrum LED
Measuring Aperture 8 mm
Measurement Time ≈ 1 second
Color Data Formats CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex
Repeatability ΔE*ab ≤ 0.03
Dimensions 31.7×31.7×70.4 mm
Weight ~51 g
Data Transmission Bluetooth
Operating Temp. 0–45 °C
📦 What You Get in the Box
LS170 Colorimeter
USB-C data/charging cable
Cleaning cloth
User manual
Certificate/quality card
🧰 Typical Uses
This device is ideal for color measurement, quality control, and color matching in industries like:
Printing & packaging
Paints, coatings, and inks
Textiles, plastics, leather
Product manufacturing where color consistency matters
