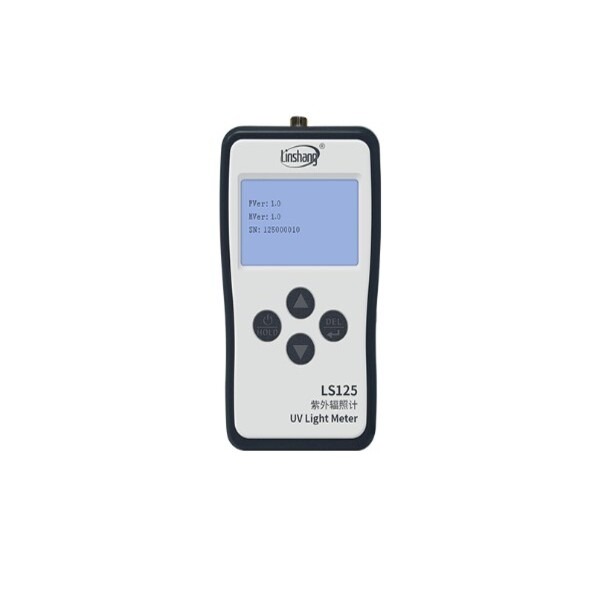

UVC-X0 Probe for LS125 UV Light Meter — Professional UVC Sterilization Measurement
In today’s world, UVC germicidal lamps are widely used for sterilization and disinfection in hospitals, laboratories, public transport, and residential environments. To ensure these lamps are working effectively and safely, accurate measurement of UVC radiation intensity and energy is essential. The UVC-X0 Probe, when used with the LS125 Multi-Probe UV Light Meter, delivers precise and reliable measurements of UVC output, especially around the critical 254 nm germicidal band.
🧪 What Is the UVC-X0 Probe?
The UVC-X0 is a digital UVC radiation detector probe designed for use with the LS125 UV Light Meter host. It is optimized to measure high-power UVC germicidal lamp output, providing both radiation intensity (μW/cm²) and energy dose (μJ/cm²) data.
Unlike stand-alone UV meters that may only detect UVA or broad UV ranges, the UVC-X0 Probe is precisely calibrated for the 230–280 nm spectral range with a peak response at 254 nm — the primary wavelength used in low-pressure mercury germicidal lamps.
📊 Key Features
📐 Wide Power Range & High Accuracy
Spectral response: 230 – 280 nm (λp = 254 nm)
Power range: 0 – 200, 000 μW/cm² (high-power UVC lamps)
Energy range: 0 – 9, 999, 999 μJ/cm²
Resolution: 0.1 μW/cm²
Sampling: ~6 readings/sec
Switchable units: μW/cm², mW/cm², W/m²
These specs help professionals accurately measure both instantaneous intensity and cumulative UVC energy from germicidal lamps.
📊 Digital Probe Technology
The UVC-X0 Probe uses advanced digital signal processing inside the probe itself, which means data is transmitted digitally to the LS125 host for strong anti-interference performance and stable measurements.
📈 Statistical Measurement Functions
Real-time data is more than a single number — the UVC-X0 Probe can display:
Real-time intensity
Maximum/Minimum values
Average intensity
Measurement duration and accumulated energy
All these statistics help you evaluate lamp effectiveness and consistency during operation.
📍 Typical Applications
The UVC-X0 Probe with LS125 UV Light Meter is ideal for measuring UVC output in environments such as:
Healthcare facilities & disease control centers
Pharmaceutical and food processing plants
Schools, kindergartens, and public spaces
Buses, movie theaters, offices, and homes equipped with UVC sterilizers
Here, measuring UVC levels ensures that germicidal systems are effectively sanitizing air and surfaces without over-exposure.
📈 Why Accurate UVC Measurement Matters
UVC radiation at ~254 nm is highly effective at disrupting the DNA of bacteria and viruses — a key reason it’s used in sterilization systems. But without accurate measurement:
Lamps may underperform, leaving microbes active,
Or they can over-irradiate, wasting energy and potentially causing safety issues.
Using a calibrated probe like UVC-X0 ensures that your UVC system is operating where you want it — and only there.
🛠️ LS125 + UVC-X0 vs Other Configurations
LS125 + UVC-X0 Probe: Best suited for 254 nm low-pressure mercury germicidal lamps with a wide measurement range.
LS125 + UVCWP-X1 Probe: Same range but waterproof for water treatment applications.
LS125 + UVCLED-X0 Probe: Suited for UVC LED sources with slightly broader spectral response.
