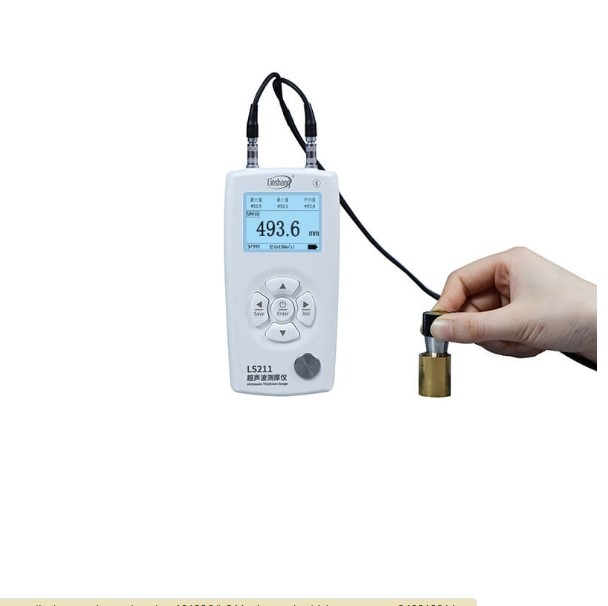

LS211 Ultrasonic Thickness Gauge

The LS211 Ultrasonic Thickness Gauge is a handheld non-destructive measurement instrument that uses the ultrasonic pulse-echo principle to measure the wall thickness of materials that transmit ultrasonic waves — such as metals, plastics, glass, and ceramics. It’s widely used in industrial inspection where you can access only one surface of the object (e.g., pipes, tanks, sheets). 📊 Key Specifications ✨ Measurement Performance Thickness range: 0.8 mm to 600 mm on steel (varies with probe). Resolution: 0.8–10 mm: 0.001 mm 10–100 mm: 0.01 mm 100–600 mm: 0.1 mm Accuracy: ±0.05 mm (0.8–10 mm) ±0.5 % of reading (10–600 mm) Sound velocity range: 1000–19999 m/s Display: 240 × 160 dot matrix LCD (mm/inch selectable). 🔍 Probe Options The LS211 can work with four types of probes depending on the application: Probe Type Typical Use Thickness Range (Steel) Min. Measuring Area Standard probe (5 MHz φ10) General use 0.8–600 mm φ10 mm Micro-diameter probe (7 MHz PT-06) Small or curved surfaces 0.75–80 mm φ6 mm Coarse crystal probe (2 MHz ZT-12) Cast iron / high grain materials 3–200 mm φ12 mm High-temperature probe (5 MHz GT-12) Higher temp workpieces 3–200 mm φ12 mm Each probe is identified automatically when connected. 🛠️ Features & Modes ✔ Two Measurement Modes QC Mode: Set upper/lower thickness limits and get a pass/fail indication. Statistics Mode: Automatically calculates max, min, and average from recent measurements. ✔ Automatic Gain Adjustment Gain adjusts automatically based on material and thickness for clear echo detection. ✔ E-E (coating penetration) Mode Allows measuring substrate thickness through paint/coating without removing it. ✔ Bluetooth & Software Support Built-in Bluetooth for connecting to a phone app for data storage/sharing. PC software available for Excel export and review. ✔ Large On-board Memory Stores up to 999 measurements, with customizable sound velocity for up to 18 materials. 📌 Typical Applications The LS211 is useful for monitoring the remaining wall thickness of structures to assess corrosion or wear, including: Pipes and tubes Pressure vessels Structural steel Ship hulls Storage tanks Aerospace parts Automotive components 📦 Physical & Power Details Power: 2 × AA batteries. Size: ~142 × 72 × 28 mm. Weight: ~230 g. Operating Temp: –10 °C to 50 °C (non-condensing).
